EZ Drain is our simple and affordable solution for an in-floor building drainage system. We offer our EZ Drain product line in two distinct variations: slot drains and trench drains.

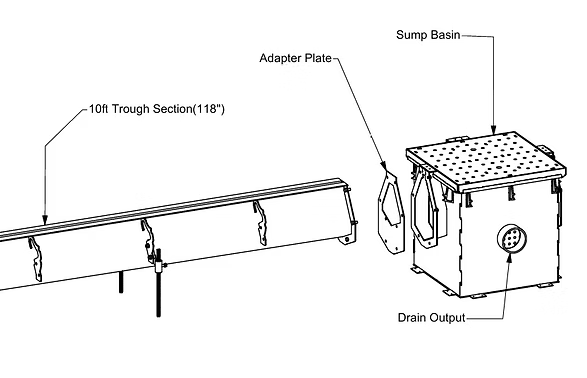

Slot Drains
Slim, discreet and neat look. Water will drain away leaving all residue and particles in strainer basket for dumping.
Our Trough Profile is designed with steeper wall sides than other competing floor slot trough drains. This increases loading capacity. Reduced likelihood of surrounding concrete collapsing in unusual loading situations.
- Installs easily, adjustable height with rebar set screw
- Pre-sloped design
- Sectional, bolt-together design.
- Custom lengths available
- Extra thick top flange (7 Ga.)
- Commercial or Residential style
- 304 Stainless Steel or Galvanized
Slot Drain Section Sizes
Commercial Style (Slope: 0.5″/10ft)
| Section | A | B | C |
| END-A Section | 118” | 9.5” | 10” |
| A-B Section | 118” | 10” | 10.5” |
| B-C Section | 118” | 10.5” | 11” |
| C-D Section | 118” | 11” | 11.5” |
| D-E Section | 118” | 11.5” | 12” |
| E-F Section | 118” | 12” | 12.5” |
| F-H Section | 118” | 13” | 13.5” |
5ft Lengths available, 45° and 90° angles available
Residential Style (Slope: 0.25″/10ft)
| Section | A | B | C |
| END-A Section | 118” | 9.5” | 10” |
| A-B Section | 118” | 10” | 10.5” |
| B-C Section | 118” | 10.5” | 11” |
| C-D Section | 118” | 11” | 11.5” |
| D-E Section | 118” | 11.5” | 12” |
| E-F Section | 118” | 12” | 12.5” |
| F-H Section | 118” | 13” | 13.5” |
5ft Lengths available
Slot Drain Sump Sizes
Commercial Style (available with 1-2, or 3 inlets)
| A | B | |
| 18 x 18 | 18″ | 20.5 |
| 18 x 18 x 45deg | 18″ | 20.5 |
| 24×24 | 24″ | 20.5 |
| 24×24 x 45deg | 24″ | 20.5 |
Residential Style (available with 1-2, or 3 inlets)
| A | B | C | |
| 18 x 18 | 12 | 12 | 12.6 |

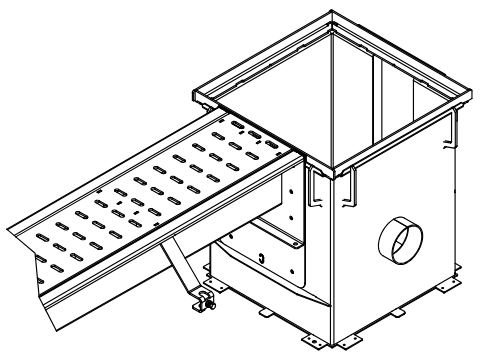

Trench Drains
Ideal for installation in any high-volume drainage applications, such as industrial sites, loading docks, or parking lots.
- Installs easily, adjustable height with rebar set screw
- Easier cleaning access, higher volume drainage
- Sectional, bolt-together design.
- Heavy-duty grate
- Custom lengths available
Built Local
Ez Drains are designed & manufactured in Southeast Minnesota. We utilize locally sourced materials, and in-house state of the art equipment at our 75,000 sq. ft Metal Fabrication Facility. Research, continuous improvement, quality manufacturing ensures that you are receiving the best product for your hard earned dollars.
